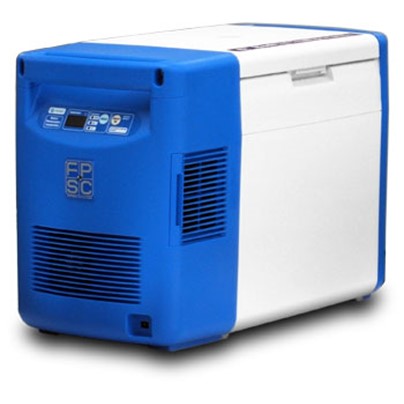

SC-BV25 Vaccine Transport Fridge 25L
SC-BV25 Vaccine Transport Fridge 25L
SC-BV25 Vaccine Transport Fridge 25L

SC-BV25 Vaccine Transport Fridge 25L

The Twinbird SC-BV25 Portable Fridge has a small and efficient Free Piston Stirling Cooling System on board which is protected in a lightweight and robust body.

It can be plugged into a standard household electrical outlet or connect to a 12V DC car battery - enhancing the units mobility.

In addition to desktop and rack mountable uses in laboratories, SC-BV25 can be used for cold chain transportation of temperature sensitive materials between logistic centers and end-users.




- Efficient, Durable, and Environmentally Friendly "Free Piston Stirling Cooling System"

The proven Free Piston Stirling Cooling System developed by Twinbird is the heart of our products. Two free moving, linear motor driven pistons create non-cycling, quiet and efficient cooling with highly precise temperature control. The solid and oil-free construction makes the unit extremley durable and capable of cooling to -40 degrees. The system uses helium as the refrigeant and is environmentally friendly with a low carbon footprint and zero ozone depletion potential; thus contributing to the environmental management needs of your company.


- Thermo Siphone Energy Transfer Technology

The Thermo Siphon Evaporator, which transfers energy from the cooling system to the container, is a stable of the art system that has been proven highly effective in aerospace, energy and military applications. Unlike conventional refrigeration methods, which can experience large temperature fluctuations , the Thermo Siphon Evaporator offers rapid, continuous and uniform cooling. The simple construction contains no moving parts ensuring a rugged, robust container with uniform temperature distribution.



- Light Weight (16kgs)

- Option to purchase a Twinbird Trolley for ease of movement

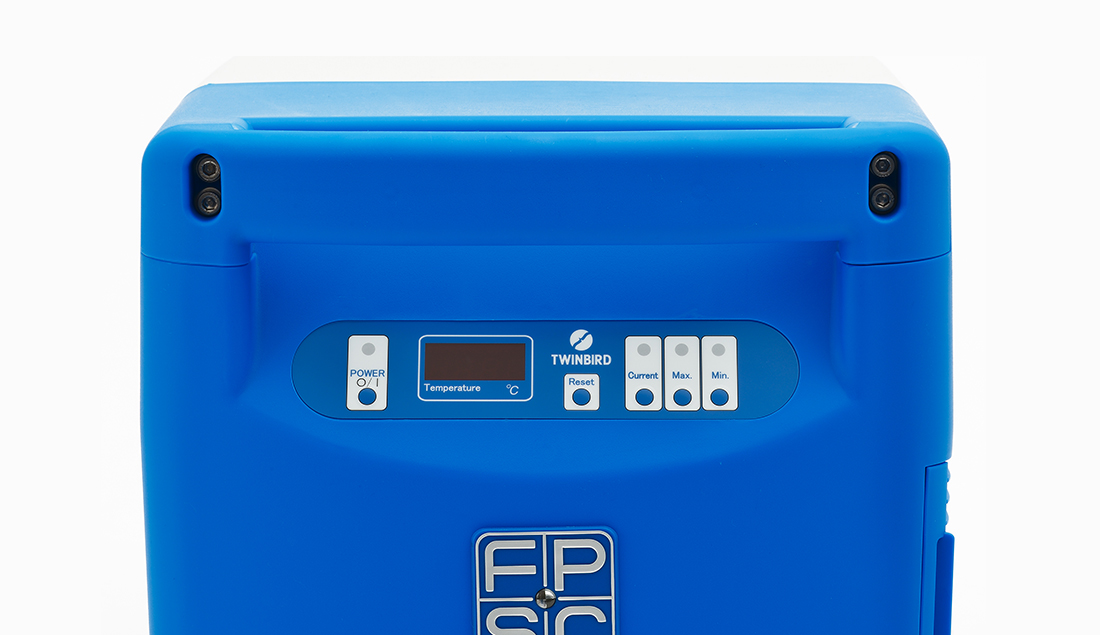

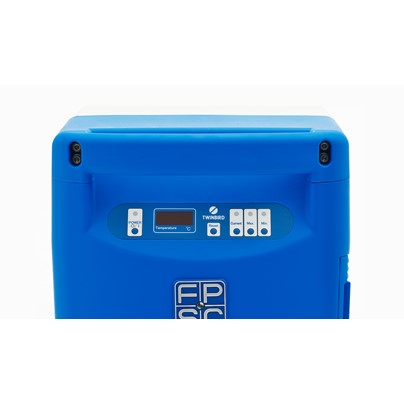

- LED Temperature Display

- Minimum and Maximum Temperature Memory

- Warning Alarm (beeping sound and flashing LED read-out)


Dimensions (outside) WDH: 695 x 350 x 460 (mm)

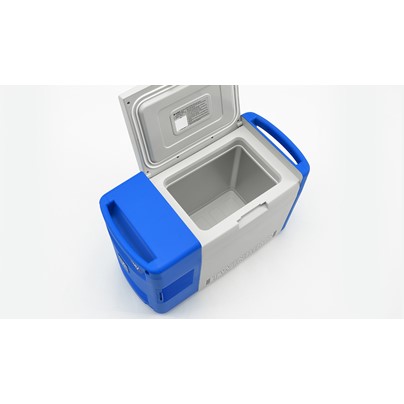

Dimensions (inside) WDH: 335 x 225 x 340 (mm), 25 liters
Weight 15 kg
Power source voltage DC 12 Volts
Power consumption 48 VA
Setting Temperature 4 ℃ +/- 2 ℃ (ambient temp -10 ℃ to 35 ℃)
Noise 40 dB (A) (Horizontally 1 m from Cooler, after stable operation)
Include 2 container box, Cigarette Plug Cable (3m, DC12 Volts)
Accessory SC-AD70 AC Adapter
