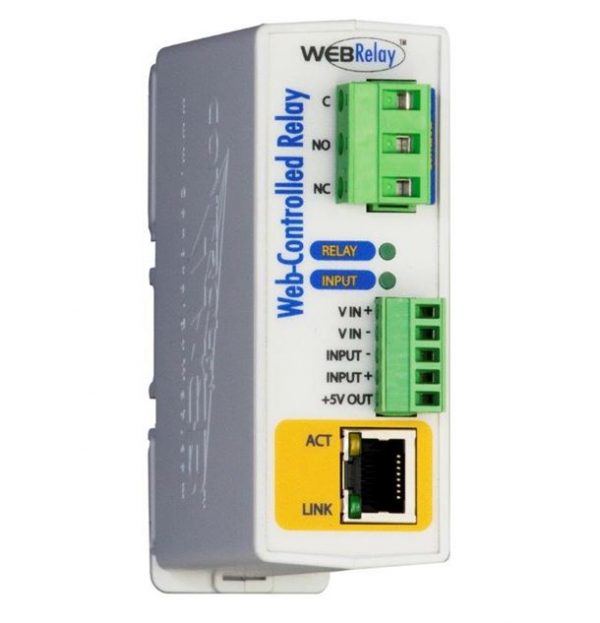

WebRelay

WebRelay™ provides reliable remote relay control and discrete signal monitoring over any IP network.

WebRelay, can provide remote relay control in countless applications including pump and motor control, security lock systems, remote reboot, and lighting control. WebRelay’s powerful and flexible design make imagination its only limit.

WebRelay also has an optically isolated input that can be used to monitor the state of devices, control the relay, or control a remote relay somewhere else on the network. This feature is useful to extend the output of a PLC to another building or to allow a switch to control a device in another state.

More Details
Specifications
Documentation

Models

WebRelay™ Industrial:

Model No.	Relay Outputs	Contact Rating	Opto-Inputs	Input Range	*Power Supply
X-WR-1R12-1I-I	1 (SPDT)	12A @ 240V max	1	4-12V DC	9-28V DC

WebRelay™ POE (Power Over Ethernet, connect to 803.af compliant network):

Model No.	Relay Outputs	Contact Rating	Opto-Inputs	Input Range	*Power Supply
X-WR-1R12-1I-E	1 (SPDT)	12A @ 240V max	1	4-12V DC	POE or 5V DC

* These devices are sold as components and do not include a power supply.

No programming required
Full control using a standard web browser or text-based XML messages
Can operate as a Modbus/TCP slave
Password protected
12 Amp relay contacts
“On/Off” and “Pulse” modes
Optically isolated input can be used for:
- Monitoring
- Relay control
- Remote relay control (p2p)
Auto-Reboot controller mode for remote reboot of network devices
Selectable TCP ports
Two-piece (8-pin) removable terminal connectors included
DIN rail or wall-mount
Two power supply options available:
- 9-28 VDC
- Power-Over-Ethernet (802.3af)
