Models

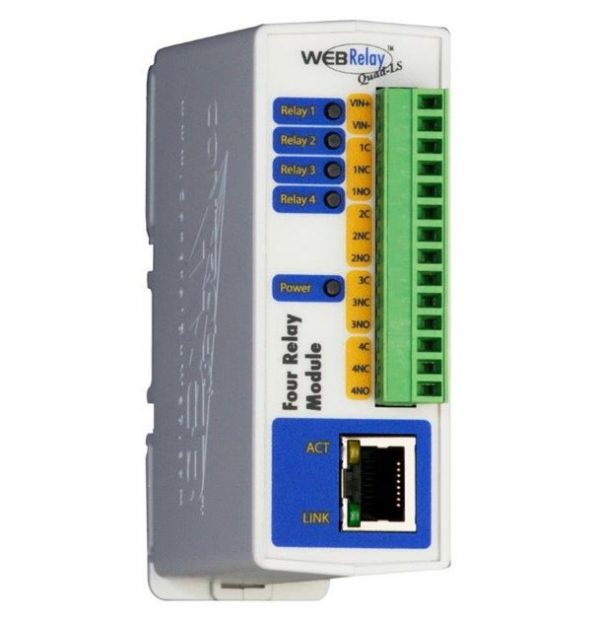

X-WR-4R3-I: WebRelay-Quad™ Industrial
X-WR-4R3-E: WebRelay-Quad™ POE (Power Over Ethernet, connect to 802.3af compliant network)
Model No. | Relay Outputs | Contact Rating | Opto-Inputs | *Power Supply |
---|---|---|---|---|
X-WR-4R3-I | 4 (SPDT) | 1A @28V max | 0 | 9-28V DC |
X-WR-4R3-E | 4 (SPDT) | 1A @28V max | 0 | POE or 5V DC |
* These devices are sold as components and do not include a power supply.
- Built-in web server for setup and remote relay control from a web-browser
- No special software or device drivers required
- XML status and control page makes communications with custom software interfaces simple
- Can operate as a Modbus/TCP slave device
- Four independent, 28V 1A relays (SPDT)
- “On/Off” and “Pulse” modes
- Rugged, compact enclosure can be DIN-Rail or Wall mounted
- Includes a 2-piece (14-pin) industrial terminal connector that makes connections
convenient - “Power-Over-Ethernet” (802.3af) option available.
